My first DIY contraption - "Ghetto Nine"
« on: October 19, 2008, 04:18:44 PM »
Hooray!
 :green:
I been lurking on this board for years, but haven't built anything, for various reasons, mostly lack of time, parts, etc.. I'm not a complete n00b, in my better years (high school) I was into electronics and such, but then I dropped out of college and instead of electronics engineer I became a boogie singer, singing in a rock-n-roll band, (you know the drill)... Promiscuity and substance abuse didn't leave any free time for more meaningful hobbies, then it was work and family, but I was sure I can build something, if I gather enough random parts and have some spare time.. Anyhow, after a few weeks of ocassional dremelling, drilling, soldering, and shouting "I'm coming honey!" I built this.
I, naturally, plan to build a number of devices that are popular over here, but wanted to start with something simple.

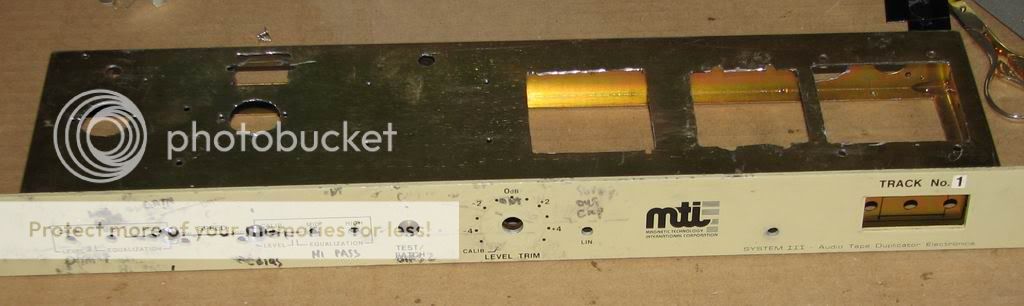

So I began with some rack unit, apparently from some tape duplication system:



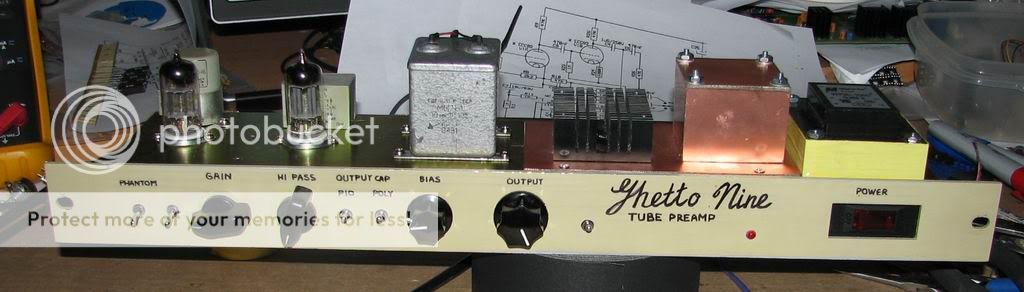

And here we are!



Little copper-clad box on top houses a small wallwart transformer that produces high voltage... Output cap switches allow to switch between 10uF russian paper-in-oil capacitor or regular polypropilene or both for output. Some small UTC transformers from ebay are used for audio.. Hi-pass switch is 11 pos too, love to cut me some lows!



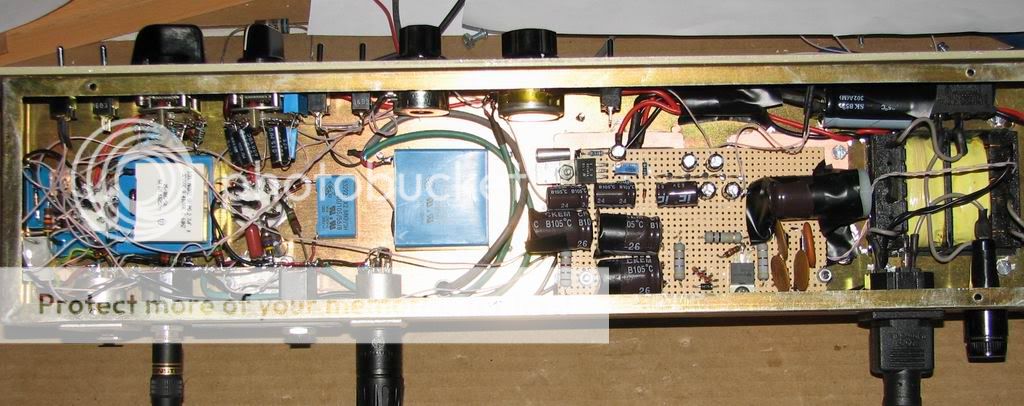

Looks rather messy inside, more of a cunning stunt than p2p, however, to my surprise, when I wired it up and turned it on, no smoke came out and the fuse was still there... Then I hooked it to an amp, and ran guitar and rhodes through it - nice range of sounds from clean to overdriven. Have yet to try it with mic, but I wanted it mostly for rhodes..  I also installed a "bias" pot, which reduces the bias of the first stage, hoping to get more distortion that way, didn't quite work out, probably you get more distiortion from de-biasing power tubes... Will have to experiment with that later...
And, for an extra ghetto touch, I installed LEDs under the tubes because they don't produce enough light.... :grin:



Anyway, thanks to Gyraf, and all good folks here at prodigy-pro, you make it possible and inspire others with your example!


jensenmann

My first DIY contraption - "Ghetto Nine"
« Reply #1 on: October 19, 2008, 04:32:38 PM »
:thumb:

this thing looks HOT

 :sam:
Jens
Quote from: PRR
The tubes of course don't care what frequency they distort

hodad

My first DIY contraption - "Ghetto Nine"
« Reply #2 on: October 19, 2008, 06:35:49 PM »
Cool build.  I actually have some of those same boxes that I've used for sundry diy.

craigmorris74

My first DIY contraption - "Ghetto Nine"
« Reply #3 on: October 19, 2008, 07:30:52 PM »
OMG!  Finally sombody who can rival my sloppy builds (but not surpass, you did a nice job finishing the piece)!  That's awesome!

zebra50

My first DIY contraption - "Ghetto Nine"
« Reply #4 on: October 20, 2008, 03:29:12 AM »
Proper DIY!
 :thumb:
Ribbon microphone services
http://www.xaudia.com
Microphone blog

gevermil

My first DIY contraption - "Ghetto Nine"
« Reply #5 on: October 20, 2008, 08:24:15 AM »
:thumb:

CJ

My first DIY contraption - "Ghetto Nine"
« Reply #6 on: October 21, 2008, 05:11:36 AM »
If it sounds good, don't move a single wire.
 :thumb:
If I can't fix it, I can fix it so nobody else can!
Frank's Tube Page: www.mif.pg.gda.pl/homepages/frank/vs.html
Guitar Amps: http://bmamps.com/Tech_sch.html
