SSL 4K channel dynamics. (And more in future). PCB's/kits: Available!

Help Support GroupDIY:

Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
Well... After breadboarding some stuff with THAT2252 and AD RMS/DC converter, (this the HINT),
almost whole weekend was dedicated to draw this PCB:



The person who will give right answer first, will receive first set of PCB's with engraved front/metal work for free.

Features? Well, later)


Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
Yep. Done.
[silent:arts] is the winner. One minute, aye!!!!


Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
Well, if so, here is the main thing:

More: tomorrow. Almost asleep.


Attachments

  • rms_dc_hint.png
    7.8 KB · Views: 758

Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
[silent:arts] said:
Igor said:
[silent:arts] is the winner
this was easy ;D
you have my shipping address? :) :) :)


Please mail it to igor_jazz at yahoo dot com.
When I have first batch of PCB's and test it, you have the PCB, engraved front and bracket. Congrats, man!


[silent:arts]

Well-known member
White Market Member
Joined
Jun 4, 2004
Messages
5,139
Location
Berlin, Germany
Igor, let us think about how to donate my package to the forum.

female member?
youngest member?
oldest member?
student member?

since I'm asleep already too,
we decide later


edanderson

Well-known member
Joined
Jun 4, 2004
Messages
637
Location
atlanta
auction the parts off and give the money to the forum?

AD536 is pretty pricey, no?  about 3x the cost of the 2522, IIRC.  maybe some can get the AD part but not the 2522 in their area...

ed


[silent:arts]

Well-known member
White Market Member
Joined
Jun 4, 2004
Messages
5,139
Location
Berlin, Germany
edanderson said:
auction the parts off and give the money to the forum?
mhm, the forum already gets $60 white market fees each month from Igor and me together 8)

ChrioN said:
set up an auction for the children in africa?
I like this idea. If Igor is fine with it I will build it (to donate the parts), and the finished & tested unit will be auctioned for the children in africa!


ruairioflaherty

Well-known member
Joined
Jul 6, 2005
Messages
2,303
Location
Los Angeles
[quote author=[silent:arts]
I like this idea. If Igor is fine with it I will build it (to donate the parts), and the finished & tested unit will be auctioned for the children in africa!
[/quote]

Volker, you rock.


Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
Cool than, moving on with this thingy.....

As soon as I will have first tested batch of PCB's, 2 sets are going to Volker.

Docs will be posted here very soon.

Absolutely happy with auction and donating. Idea is great.

We have to think out when/where. Volker?

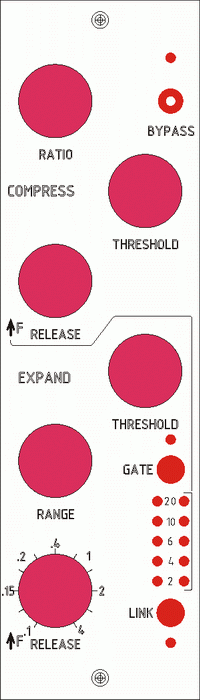

Some sneak-preview....

You see 4 boards, right?

There should be 5th board to make this thing DYNAMICS MONSTER.
The guess is 10-pin connector on mother board.

What is the secret add-on board???

Same, set of PCB's to winner.

Front (the work is in-progress):

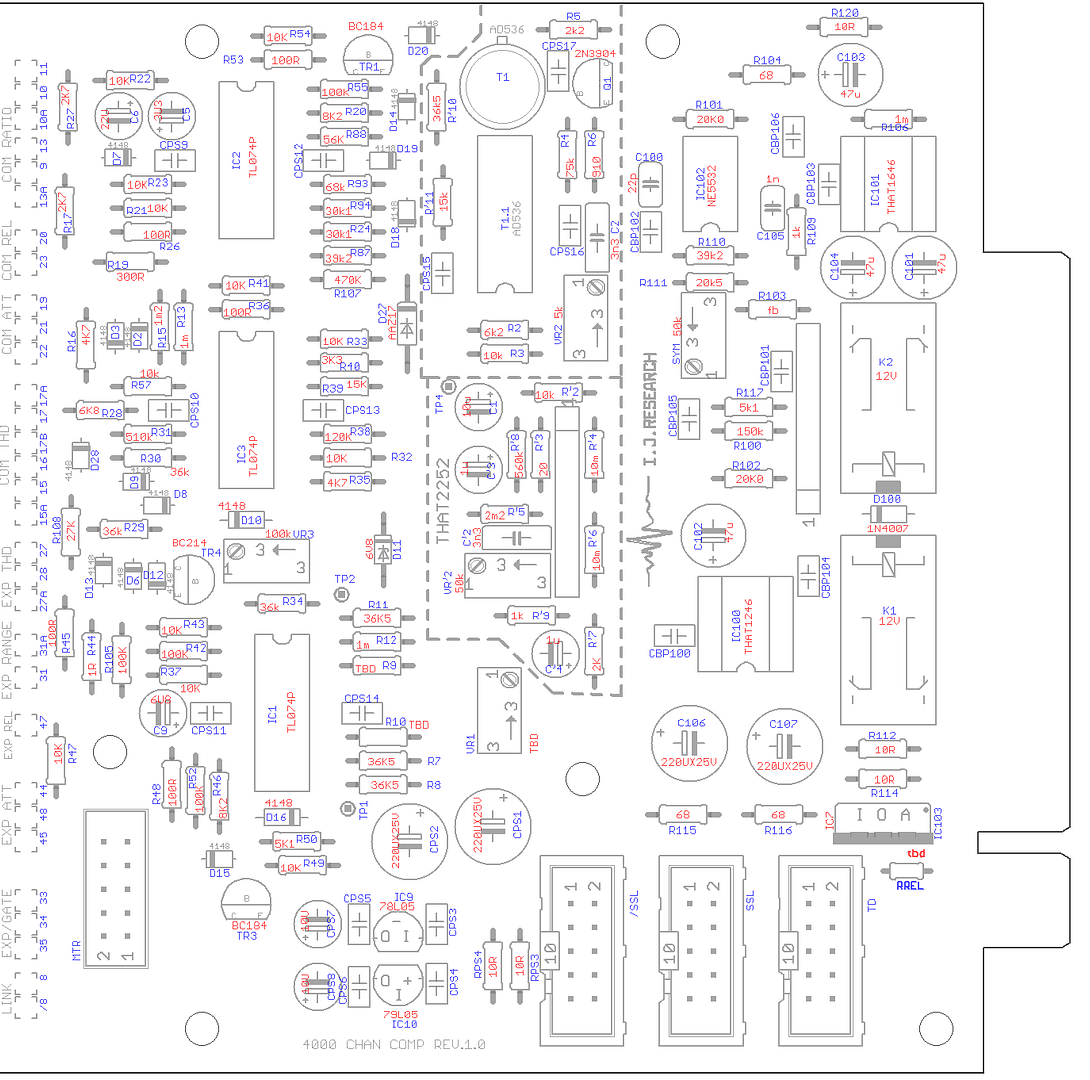

Mother board:

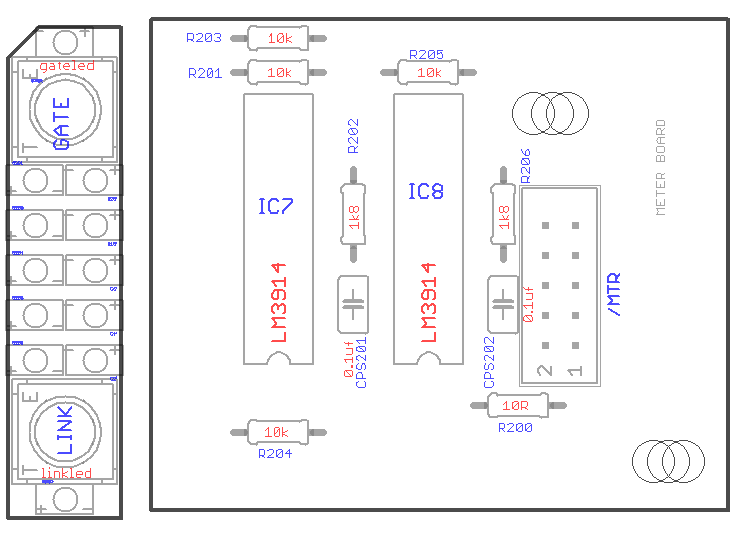

Meter and bypass:






Igor

Well-known member
Joined
Jul 17, 2006
Messages
2,193
Location
Israel
Nope. But another dynamics sidechain to same sound path, easy-mounted in neighbor slot of 500/51X rack.
Lads:

Fantazy. Passion. Guess!!!!!


mulletchuck

Well-known member
Joined
Jan 9, 2010
Messages
1,132
Location
Midwood, Brooklyn, NYC
when are you gonna do the EQ that sits next to this in the software plugin version of the ssl G-channel strip?  that'll complete the set!!!

great job, by the way!


Randyman...

Well-known member
Joined
Nov 7, 2010
Messages
223
Location
Texas
Igor said:
Nope. But another dynamics sidechain to same sound path, easy-mounted in neighbor slot of 500/51X rack.
Lads:

Fantazy. Passion. Guess!!!!!

3 Guesses from this noob:

1) Variable "Strength" Stereo Linking (like the Daking FET-III)?
2) Muiltichannel linking/sidechain summing for 5.1 type applications?
3) De-Esser, but needs the filter from the adjacent module?

8)
